Google-style Loading Animation using css keyframers

This is a Loading Animation Concept on Google Style inspired by those cool animations made for Google Home App!. This tricky tumbling transform-origin animation using only CSS.

Demo Download

Author keyframers
Hits
Created SEPTEMBER 19, 2018
License Open
Compatible browsers Chrome, Firefox, Safari

HTML Snippet

<div id="app">
  <div class="boxes">
    <div class="box -blue"></div>
    <div class="box -red"></div>
    <div class="box -yellow"></div>
    <div class="box -green"></div>
  </div>
</div>

CSS Code

#app {
  -webkit-animation-duration: 2s;
          animation-duration: 2s;
  -webkit-animation-timing-function: cubic-bezier(0.6, 0, 0.4, 1);
          animation-timing-function: cubic-bezier(0.6, 0, 0.4, 1);
  -webkit-animation-iteration-count: infinite;
          animation-iteration-count: infinite;
  -webkit-animation-fill-mode: both;
          animation-fill-mode: both;
  will-change: transform;
}

.boxes {
  display: grid;
  grid-template-columns: 1fr 1fr;
  grid-template-rows: 1fr 1fr;
  height: 25vmin;
  width: 25vmin;
  background: #eee;
  background-image: radial-gradient(circle at center, #FFF 45%, transparent 45%), linear-gradient(to right, transparent 49.99%, #ccc 50%);
}

.boxes,
.box {
  -webkit-animation: inherit;
          animation: inherit;
}

/* ---------------------------------- */
.-blue {
  background: #5D88C5;
}

.-red {
  background: #F04F3D;
}

.-yellow {
  background: #ffc60b;
}

.-green {
  background: #3AAF56;
}

/* ---------------------------------- */
.boxes {
  -webkit-animation-name: box-anim;
          animation-name: box-anim;
}

@-webkit-keyframes box-anim {
  0% {
    -webkit-transform: rotate(-0.125turn);
            transform: rotate(-0.125turn);
  }
  100% {
    -webkit-transform: rotate(-1.125turn);
            transform: rotate(-1.125turn);
  }
}

@keyframes box-anim {
  0% {
    -webkit-transform: rotate(-0.125turn);
            transform: rotate(-0.125turn);
  }
  100% {
    -webkit-transform: rotate(-1.125turn);
            transform: rotate(-1.125turn);
  }
}
#app {
  -webkit-animation-name: box-container;
          animation-name: box-container;
}

@-webkit-keyframes box-container {
  0%, 60%, 90%, 100% {
    -webkit-transform: none;
            transform: none;
  }
  70% {
    -webkit-transform: rotate(0.03turn);
            transform: rotate(0.03turn);
  }
}

@keyframes box-container {
  0%, 60%, 90%, 100% {
    -webkit-transform: none;
            transform: none;
  }
  70% {
    -webkit-transform: rotate(0.03turn);
            transform: rotate(0.03turn);
  }
}
/* ---------------------------------- */
.-blue {
  -webkit-animation-name: blue-anim;
          animation-name: blue-anim;
  -webkit-transform-origin: bottom right;
          transform-origin: bottom right;
}

@-webkit-keyframes blue-anim {
  0% {
    -webkit-transform: translateY(-100%);
            transform: translateY(-100%);
  }
  20% {
    -webkit-transform: translateX(-100%) translateY(-100%) rotate(0.25turn);
            transform: translateX(-100%) translateY(-100%) rotate(0.25turn);
  }
  40% {
    -webkit-transform: translateX(0) translateY(-100%) rotate(-0.25turn);
            transform: translateX(0) translateY(-100%) rotate(-0.25turn);
  }
  40.0002%, 75% {
    -webkit-transform: translateX(0) translateY(0%) rotate(0turn);
            transform: translateX(0) translateY(0%) rotate(0turn);
  }
  100% {
    -webkit-transform: translateY(-100%);
            transform: translateY(-100%);
  }
}

@keyframes blue-anim {
  0% {
    -webkit-transform: translateY(-100%);
            transform: translateY(-100%);
  }
  20% {
    -webkit-transform: translateX(-100%) translateY(-100%) rotate(0.25turn);
            transform: translateX(-100%) translateY(-100%) rotate(0.25turn);
  }
  40% {
    -webkit-transform: translateX(0) translateY(-100%) rotate(-0.25turn);
            transform: translateX(0) translateY(-100%) rotate(-0.25turn);
  }
  40.0002%, 75% {
    -webkit-transform: translateX(0) translateY(0%) rotate(0turn);
            transform: translateX(0) translateY(0%) rotate(0turn);
  }
  100% {
    -webkit-transform: translateY(-100%);
            transform: translateY(-100%);
  }
}
/* ---------------------------------- */
.-red {
  -webkit-animation-name: red-anim;
          animation-name: red-anim;
}

@-webkit-keyframes red-anim {
  20% {
    -webkit-transform: translateX(-100%);
            transform: translateX(-100%);
  }
  40% {
    -webkit-transform: translateX(0%);
            transform: translateX(0%);
  }
}

@keyframes red-anim {
  20% {
    -webkit-transform: translateX(-100%);
            transform: translateX(-100%);
  }
  40% {
    -webkit-transform: translateX(0%);
            transform: translateX(0%);
  }
}
/* ---------------------------------- */
.-green {
  -webkit-animation-name: green-anim;
          animation-name: green-anim;
  -webkit-transform-origin: top left;
          transform-origin: top left;
}

@-webkit-keyframes green-anim {
  0% {
    -webkit-transform: translateX(100%);
            transform: translateX(100%);
  }
  20% {
    -webkit-transform: translateX(0%);
            transform: translateX(0%);
  }
  40% {
    -webkit-transform: translateX(100%) rotate(0.2turn);
            transform: translateX(100%) rotate(0.2turn);
  }
  60% {
    -webkit-transform: translateX(100%) rotate(-0.25turn);
            transform: translateX(100%) rotate(-0.25turn);
  }
  80% {
    -webkit-transform: translateX(100%) rotate(0.25turn);
            transform: translateX(100%) rotate(0.25turn);
  }
  80.002% {
    -webkit-transform: translateX(0%) rotate(0turn);
            transform: translateX(0%) rotate(0turn);
  }
  100% {
    -webkit-transform: translateX(100%) rotate(0turn);
            transform: translateX(100%) rotate(0turn);
  }
}

@keyframes green-anim {
  0% {
    -webkit-transform: translateX(100%);
            transform: translateX(100%);
  }
  20% {
    -webkit-transform: translateX(0%);
            transform: translateX(0%);
  }
  40% {
    -webkit-transform: translateX(100%) rotate(0.2turn);
            transform: translateX(100%) rotate(0.2turn);
  }
  60% {
    -webkit-transform: translateX(100%) rotate(-0.25turn);
            transform: translateX(100%) rotate(-0.25turn);
  }
  80% {
    -webkit-transform: translateX(100%) rotate(0.25turn);
            transform: translateX(100%) rotate(0.25turn);
  }
  80.002% {
    -webkit-transform: translateX(0%) rotate(0turn);
            transform: translateX(0%) rotate(0turn);
  }
  100% {
    -webkit-transform: translateX(100%) rotate(0turn);
            transform: translateX(100%) rotate(0turn);
  }
}
/* ---------------------------------- */
.-yellow {
  -webkit-animation-name: yellow-anim;
          animation-name: yellow-anim;
  -webkit-transform-origin: top left;
          transform-origin: top left;
}

@-webkit-keyframes yellow-anim {
  0%, 40% {
    -webkit-transform: rotate(0);
            transform: rotate(0);
  }
  60% {
    -webkit-transform: rotate(0.45turn);
            transform: rotate(0.45turn);
  }
  80%, 100% {
    -webkit-transform: rotate(0);
            transform: rotate(0);
  }
}

@keyframes yellow-anim {
  0%, 40% {
    -webkit-transform: rotate(0);
            transform: rotate(0);
  }
  60% {
    -webkit-transform: rotate(0.45turn);
            transform: rotate(0.45turn);
  }
  80%, 100% {
    -webkit-transform: rotate(0);
            transform: rotate(0);
  }
}
/* ---------------------------------- */
/* Scrubbing animation control */
:root {
  --scrub: 0;
  --play-state: running;
}

#app {
  -webkit-animation-delay: calc(-1 * 2s * var(--scrub));
          animation-delay: calc(-1 * 2s * var(--scrub));
  -webkit-animation-play-state: var(--play-state);
          animation-play-state: var(--play-state);
}

#range {
  position: absolute;
  top: .5em;
  width: 80%;
  padding: .5em;
  opacity: 0.5;
  transition: opacity .3s linear;
  cursor: col-resize;
}
#range:hover, #range:focus {
  opacity: 1;
}

/* ---------------------------------- */
#app:hover {
  outline: 2px solid red;
}
#app:hover .box:after {
  content: '';
  display: block;
  width: 100%;
  height: 100%;
  position: absolute;
  top: 0;
  left: 0;
  border: solid 15px white;
  background: red;
  -webkit-transform-origin: inherit;
          transform-origin: inherit;
  -webkit-transform: scale(0.1);
          transform: scale(0.1);
}

/* ---------------------------------- */
*, *:before, *:after {
  box-sizing: border-box;
  position: relative;
}

html, body {
  height: 100%;
  width: 100%;
  margin: 0;
  padding: 0;
}

body {
  display: flex;
  justify-content: center;
  align-items: center;
}

Preview

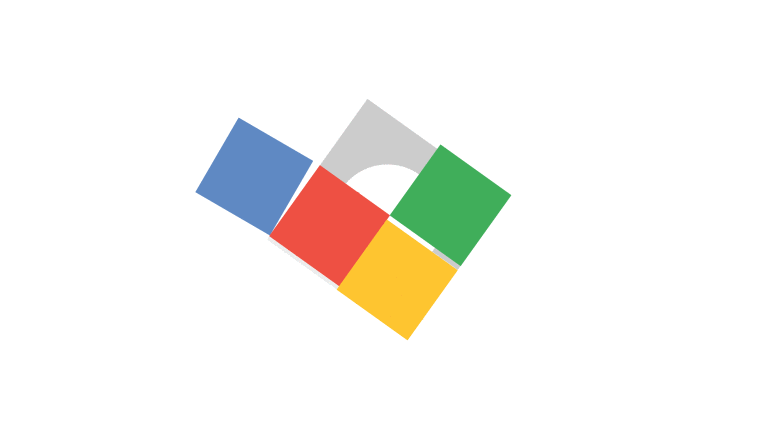

Google-style Loading Animation using css keyframers preview
