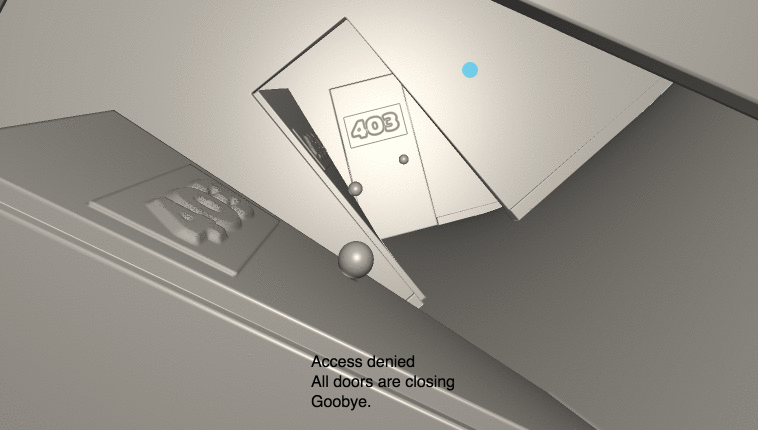

Endless Hallway 403 Forbidden Page

Endless Hallway 403 Forbidden Page developed using CSS, HTML, Three.js and JavaScript. Demo and download avilable.

Demo Download

Author Liam Egan
Hits
Created SEPTEMBER 19, 2018
License Open
Compatible browsers Chrome, Firefox, Safari

HTML Snippet

<script src="https://cdnjs.cloudflare.com/ajax/libs/three.js/88/three.min.js"></script>
<script id="vertexShader" type="x-shader/x-vertex">
    void main() {
        gl_Position = vec4( position, 1.0 );
    }
</script>
<script id="fragmentShader" type="x-shader/x-fragment">
    uniform vec2 u_resolution;
    uniform float u_time;
    uniform vec2 u_mouse;
  uniform sampler2D u_plate;

    const int octaves = 2;
    const float seed = 43758.5453123;
    const float seed2 = 73156.8473192;
    // Epsilon value
    const float eps = 0.005;

    // movement variables
    vec3 movement = vec3(.0);

    // Gloable variables for the raymarching algorithm.
    const int maxIterations = 256;
    const float stepScale = .7;
    const float stopThreshold = 0.001;

  const float PI = 3.14159;



  vec3 path(float delta) {
    return vec3(0., 0., -delta*3.);
  }


  float length2( vec2 p )
  {
    return sqrt( p.x*p.x + p.y*p.y );
  }

  float length6( vec2 p )
  {
    p = p*p*p; p = p*p;
    return pow( p.x + p.y, 1.0/6.0 );
  }

  float length8( vec2 p )
  {
    p = p*p; p = p*p; p = p*p;
    return pow( p.x + p.y, 1.0/8.0 );
  }

  // Distance function primitives
  // Reference: http://iquilezles.org/www/articles/distfunctions/distfunctions.htm
  float sdBox( vec3 p, vec3 b )
  {
    vec3 d = abs(p) - b;
    return min(max(d.x,max(d.y,d.z)),0.0) + length(max(d,0.0));
  }
  float udBox( vec3 p, vec3 b )
  {
    return length(max(abs(p)-b,0.0));
  }
  float udRoundBox( vec3 p, vec3 b, float r )
  {
    return length(max(abs(p)-b,0.0))-r;
  }
  float sdSphere( vec3 p, float s )
  {
    return length(p)-s;
  }
  float sdCylinder( vec3 p, vec3 c )
  {
    return length(p.xz-c.xy)-c.z;
  }
  float sdCappedCylinder( vec3 p, vec2 h )
  {
    vec2 d = abs(vec2(length(p.xz),p.y)) - h;
    return min(max(d.x,d.y),0.0) + length(max(d,0.0));
  }
  float sdTorus82( vec3 p, vec2 t )
  {
    vec2 q = vec2(length2(p.xz)-t.x,p.y);
    return length8(q)-t.y;
  }
  float sdPlane( vec3 p)
  {
    return p.y;
  }

  // smooth min
  // reference: http://iquilezles.org/www/articles/smin/smin.htm
  float smin(float a, float b, float k) {
      float res = exp(-k*a) + exp(-k*b);
      return -log(res)/k;
  }

  vec3 random3( vec3 p ) {
      return fract(sin(vec3(dot(p,vec3(127.1,311.7,319.8)),dot(p,vec3(269.5,183.3, 415.2)),dot(p,vec3(362.9,201.5,134.7))))*43758.5453);
  }
  vec2 random2( vec2 p ) {
      return fract(sin(vec2(dot(p,vec2(127.1,311.7)),dot(p,vec2(269.5,183.3))))*43758.5453);
  }

  // The world!
  float world_sdf(in vec3 p) {
    float world = 10.;

    vec2 pxy = p.xy;
    float pz = p.z;
    float delta = pz * .3;
    float s = sin(delta);
    float c = cos(delta);
    mat2 rot = mat2(c, -s, s, c);

    p.z = mod(p.z, 1.5) - .75;
    p.xy *= rot;
    // p.z = mod(p.z, 2.) - 1.;

    float path = path(u_time).z;
    float animation = smoothstep(-2., -1.5, path - pz + p.z); // Adding the p.z here to make the doors appear solid

    const float wallWidth = .02;
    const float doorWidth = .23;

    world = udBox(p, vec3(5.,10.,wallWidth)); // wall
    world = min(world, udBox(p + vec3(0., .5, 0.), vec3(5., .05, wallWidth + .015))); // baseboard
    // world = min(world, length(max(abs(p.yz)-vec2(.05, wallWidth + .015),0.0)));
    world = max(world, -sdBox(p, vec3(doorWidth,.5,1.))); // doorframe
    world = min(world, p.y + .5); // floor
    // world = min(world, length(p.zy + vec2(.2))-.05);

    const float RAD90 = 1.5708;
    const float cospi = cos(PI);
    const float sinpi = sin(PI);
    const float cosrad90 = cos(RAD90);
    const float sinrad90 = sin(RAD90*1.1);
    c = mix(cospi, cosrad90, animation);
    s = mix(sinpi, sinrad90, animation);

    // Door
    vec3 doorP = p;
    doorP.xz *= mat2(c, -s, s, c);
    doorP.x += mix(0.001, doorWidth - .005, animation);
    doorP.z += mix(0., doorWidth - .005, animation);
    world = min(world, sdBox(doorP, vec3(doorWidth -.005,.5-.005,wallWidth)));

    // Plate
    vec3 plateoffset = vec3(0., -.2, 0.);
    vec2 plateUV = doorP.xy * vec2(-3., 3.) + .5 + plateoffset.xy * 3.;
    float t = 1. - texture2D(u_plate, plateUV).x;
    world = min(world, sdBox(doorP + plateoffset, vec3(doorWidth*.8,.1,wallWidth+.01 * t + .005)));

    // Door handle
    doorP.x += .12;
    doorP.z -= .05;
    doorP.y += .05;
    world = min(world, sdSphere(doorP, .03));


    return world;
  }

  // Fuck yeah, normals!
  vec3 calculate_normal(in vec3 p)
  {
    const vec3 small_step = vec3(0.0001, 0.0, 0.0);

    float gradient_x = world_sdf(vec3(p.x + eps, p.y, p.z)) - world_sdf(vec3(p.x - eps, p.y, p.z));
    float gradient_y = world_sdf(vec3(p.x, p.y + eps, p.z)) - world_sdf(vec3(p.x, p.y - eps, p.z));
    float gradient_z = world_sdf(vec3(p.x, p.y, p.z  + eps)) - world_sdf(vec3(p.x, p.y, p.z - eps));

    vec3 normal = vec3(gradient_x, gradient_y, gradient_z);

    return normalize(normal);
  }

  // Raymarching.
  float rayMarching( vec3 origin, vec3 dir, float start, float end, inout float field ) {

    float sceneDist = 1e4;
    float rayDepth = start;
    for ( int i = 0; i < maxIterations; i++ ) {
      sceneDist = world_sdf( origin + dir * rayDepth ); // Distance from the point along the ray to the nearest surface point in the scene.

      if (( sceneDist < stopThreshold ) || (rayDepth >= end)) {
        break;
      }
      // We haven't hit anything, so increase the depth by a scaled factor of the minimum scene distance.
      rayDepth += sceneDist * stepScale;
    }

    if ( sceneDist >= stopThreshold ) rayDepth = end;
    else rayDepth += sceneDist;

    // We've used up our maximum iterations. Return the maximum distance.
    return rayDepth;
  }

  // Based on original by IQ - optimized to remove a divide
  float calculateAO(vec3 p, vec3 n)
  {
     const float AO_SAMPLES = 5.0;
     float r = 0.0;
     float w = 1.0;
     for (float i=1.0; i<=AO_SAMPLES; i++)
     {
        float d0 = i * 0.15; // 1.0/AO_SAMPLES
        r += w * (d0 - world_sdf(p + n * d0));
        w *= 0.5;
     }
     return 1.0-clamp(r,0.0,1.0);
  }

  /**
   * Lighting
   * This stuff is way way better than the model I was using.
   * Courtesy Shane Warne
   * Reference: http://raymarching.com/
   * -------------------------------------
   * */

  // Lighting.
  vec3 lighting( vec3 sp, vec3 camPos, int reflectionPass, float dist, float field, vec3 rd) {

    // Start with black.
    vec3 sceneColor = vec3(0.0);

    vec3 objColor = vec3(1.);

    // Obtain the surface normal at the scene position "sp."
    vec3 surfNormal = calculate_normal(sp);

    // Lighting.

    // lp - Light position. Keeping it in the vacinity of the camera, but away from the objects in the scene.
    vec3 lp = vec3(-0., .3, -1.) + movement;
    // ld - Light direction.
    vec3 ld = lp-sp;
    // lcolor - Light color.
    vec3 lcolor = vec3(1.,0.97,0.92) * .5;

     // Light falloff (attenuation).
    float len = length( ld ); // Distance from the light to the surface point.
    ld /= len; // Normalizing the light-to-surface, aka light-direction, vector.
    // float lightAtten = min( 1.0 / ( 0.15*len*len ), 1.0 ); // Removed light attenuation for this because I want the fade to white

    float sceneLen = length(camPos - sp); // Distance of the camera to the surface point
    float sceneAtten = min( 1.0 / ( 0.015*sceneLen*sceneLen ), 1.0 ); // Keeps things between 0 and 1.

    // Obtain the reflected vector at the scene position "sp."
    vec3 ref = reflect(-ld, surfNormal);

    float ao = 1.0; // Ambient occlusion.
    // ao = calculateAO(sp, surfNormal); // Ambient occlusion.

    float ambient = .3; //The object's ambient property.
    float specularPower = 10.; // The power of the specularity. Higher numbers can give the object a harder, shinier look.
    float diffuse = max( 0.0, dot(surfNormal, ld) ); //The object's diffuse value.
    float specular = max( 0.0, dot( ref, normalize(camPos-sp)) ); //The object's specular value.
    specular = pow(specular, specularPower); // Ramping up the specular value to the specular power for a bit of shininess.

    // Bringing all the lighting components togethr to color the screen pixel.
    sceneColor += (objColor*(diffuse*0.8+ambient)+specular*0.5)*lcolor*1.3;
    sceneColor = mix(sceneColor, vec3(1.), 1.-sceneAtten*sceneAtten); // fog

    return sceneColor;

  }

    void main() {

      // Setting up our screen coordinates.
      vec2 aspect = vec2(u_resolution.x/u_resolution.y, 1.0); //
      vec2 uv = (2.0*gl_FragCoord.xy/u_resolution.xy - 1.0)*aspect;

      // This just gives us a touch of fisheye
      // uv *= 1. + dot(uv, uv) * 0.4;

      // movement
      movement = path(u_time);

      // The sin in here is to make it look like a walk.
      vec3 lookAt = vec3(-0., 0.2, 1.);  // This is the point you look towards, or at, if you prefer.
      vec3 camera_position = vec3(0., 0., -1.0); // This is the point you look from, or camera you look at the scene through. Whichever way you wish to look at it.

      lookAt += movement;
      // lookAt.z += sin(u_time / 10.) * .5;
      // lookAt.x += cos(u_time / 10.) * .5;
      camera_position += movement;

      vec3 forward = normalize(lookAt-camera_position); // Forward vector.
      vec3 right = normalize(vec3(forward.z, 0., -forward.x )); // Right vector... or is it left? Either way, so long as the correct-facing up-vector is produced.
      vec3 up = normalize(cross(forward,right)); // Cross product the two vectors above to get the up vector.

      // FOV - Field of view.
      float FOV = 0.6;

      // ro - Ray origin.
      vec3 ro = camera_position;
      // rd - Ray direction.
      vec3 rd = normalize(forward + FOV*uv.x*right + FOV*uv.y*up);

      // Ray marching.
      const float clipNear = 0.0;
      const float clipFar = 8.0;
      float field = 0.;
      float dist = rayMarching(ro, rd, clipNear, clipFar, field );
      if ( dist >= clipFar ) {
        gl_FragColor = vec4(vec3(1.), 1.0);
        return;
      }

      // sp - Surface position. If we've made it this far, we've hit something.
      vec3 sp = ro + rd*dist;

      // Light the pixel that corresponds to the surface position. The last entry indicates that it's not a reflection pass
      // which we're not up to yet.
      vec3 sceneColor = lighting( sp, camera_position, 0, dist, field, rd);

      // Clamping the lit pixel, then put it on the screen.
      gl_FragColor = vec4(clamp(sceneColor, 0.0, 1.0), 1.0);


    }
</script>


<div id="container" touch-action="none"></div>

<div class="message">
  <p>Access denied</p>
  <p>All doors are closing</p>
  <p>Goobye.</p>
</div>

CSS Code

body {
  margin: 0;
  padding: 0;
}

#container {
  position: fixed;
  touch-action: none;
}

.message {
  padding: 0 20px;
  font-family: Helvetica, Arial;
  position: fixed;
  bottom: 0%;
  left: 50%;
  transform: translate(-50%, -50%);
}

p {
  margin: 2px;
}

JavaScript Snippet

 /*
              Most of the stuff in here is just bootstrapping. Essentially it's just
              setting ThreeJS up so that it renders a flat surface upon which to draw
              the shader. The only thing to see here really is the uniforms sent to
              the shader. Apart from that all of the magic happens in the HTML view
              under the fragment shader.
              */

var container = void 0;
var camera = void 0,scene = void 0,renderer = void 0;
var uniforms = void 0;

var loader = new THREE.TextureLoader();
var texture = void 0,plate = void 0;
loader.setCrossOrigin("anonymous");
loader.load(
'https://s3-us-west-2.amazonaws.com/s.cdpn.io/982762/noise.png',
function (tex) {
  texture = tex;
  texture.wrapS = THREE.RepeatWrapping;
  texture.wrapT = THREE.RepeatWrapping;
  texture.minFilter = THREE.LinearFilter;
  loader.load('https://s3-us-west-2.amazonaws.com/s.cdpn.io/982762/403-2.png', function (tex) {
    plate = tex;
    init();
    animate();
  });
});


function init() {
  container = document.getElementById('container');

  camera = new THREE.Camera();
  camera.position.z = 1;

  scene = new THREE.Scene();

  var geometry = new THREE.PlaneBufferGeometry(2, 2);

  uniforms = {
    u_time: { type: "f", value: 1.0 },
    u_resolution: { type: "v2", value: new THREE.Vector2() },
    u_noise: { type: "t", value: texture },
    u_plate: { type: "t", value: plate },
    u_mouse: { type: "v2", value: new THREE.Vector2() } };


  var material = new THREE.ShaderMaterial({
    uniforms: uniforms,
    vertexShader: document.getElementById('vertexShader').textContent,
    fragmentShader: document.getElementById('fragmentShader').textContent });

  material.extensions.derivatives = true;

  var mesh = new THREE.Mesh(geometry, material);
  scene.add(mesh);

  renderer = new THREE.WebGLRenderer();
  renderer.setPixelRatio(window.devicePixelRatio);

  container.appendChild(renderer.domElement);

  onWindowResize();
  window.addEventListener('resize', onWindowResize, false);

  document.addEventListener('pointermove', function (e) {
    var ratio = window.innerHeight / window.innerWidth;
    uniforms.u_mouse.value.x = (e.pageX - window.innerWidth / 2) / window.innerWidth / ratio;
    uniforms.u_mouse.value.y = (e.pageY - window.innerHeight / 2) / window.innerHeight * -1;

    e.preventDefault();
  });
}

function onWindowResize(event) {
  renderer.setSize(window.innerWidth, window.innerHeight);
  uniforms.u_resolution.value.x = renderer.domElement.width;
  uniforms.u_resolution.value.y = renderer.domElement.height;
}

function animate() {
  requestAnimationFrame(animate);
  render();
}

function render() {
  uniforms.u_time.value += 0.01;
  renderer.render(scene, camera);
}

Preview

Endless Hallway 403 Forbidden Page Preview https://codepen.io/shubniggurath/pen/RYEQqp

Advertisement

Google Matched Content...
